Duschy Shower Cabin Orsa 5502
- Swedish brand.
- Our products are sold to stores and wholesalers.
- Find a retailer on the retailer page.
- Also find info under "Manuals and brochures"
- Width (mm)850
- Depth (mm)850
- Glass thickness (mm)4
- BrandDuschy
Description
Article no.: 5502

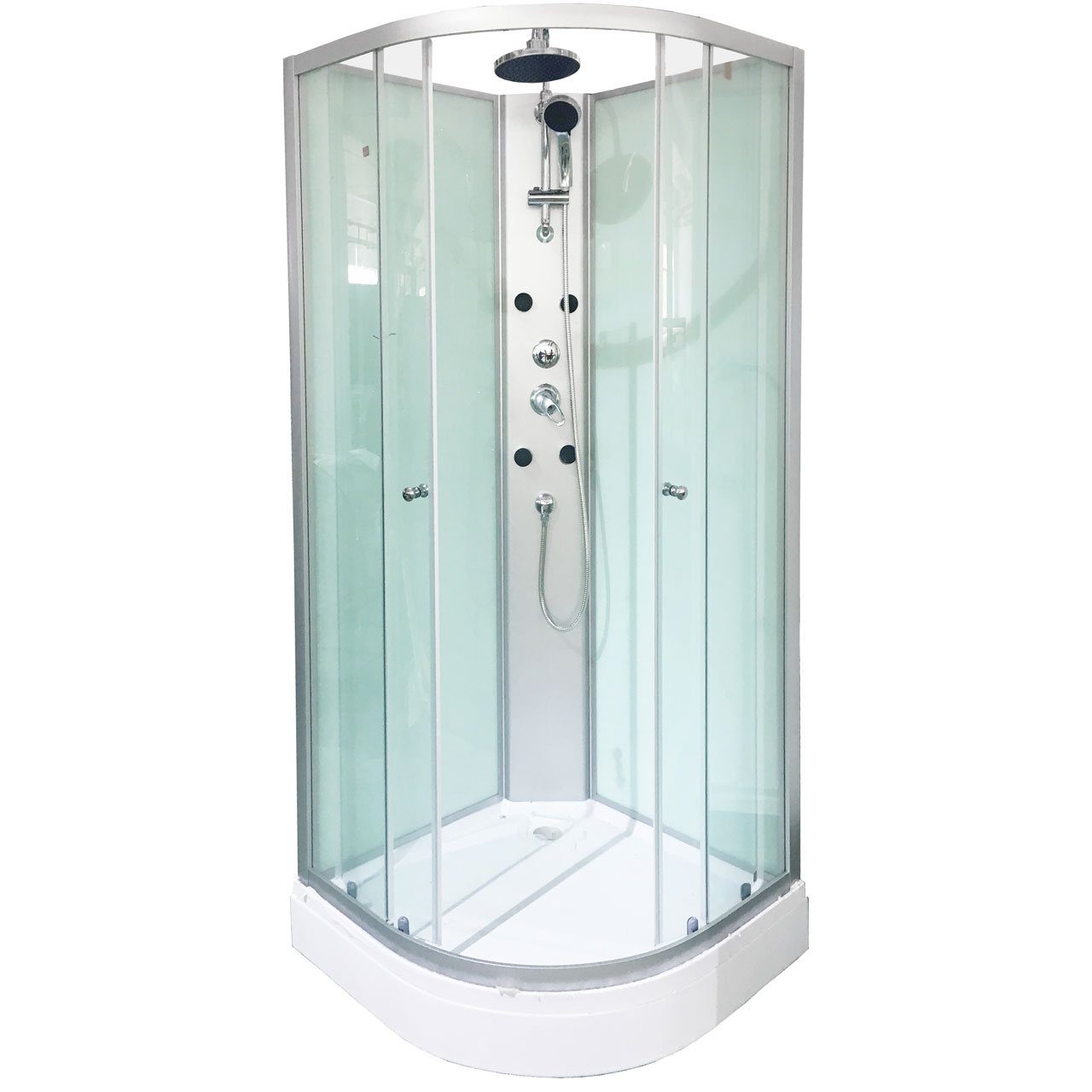

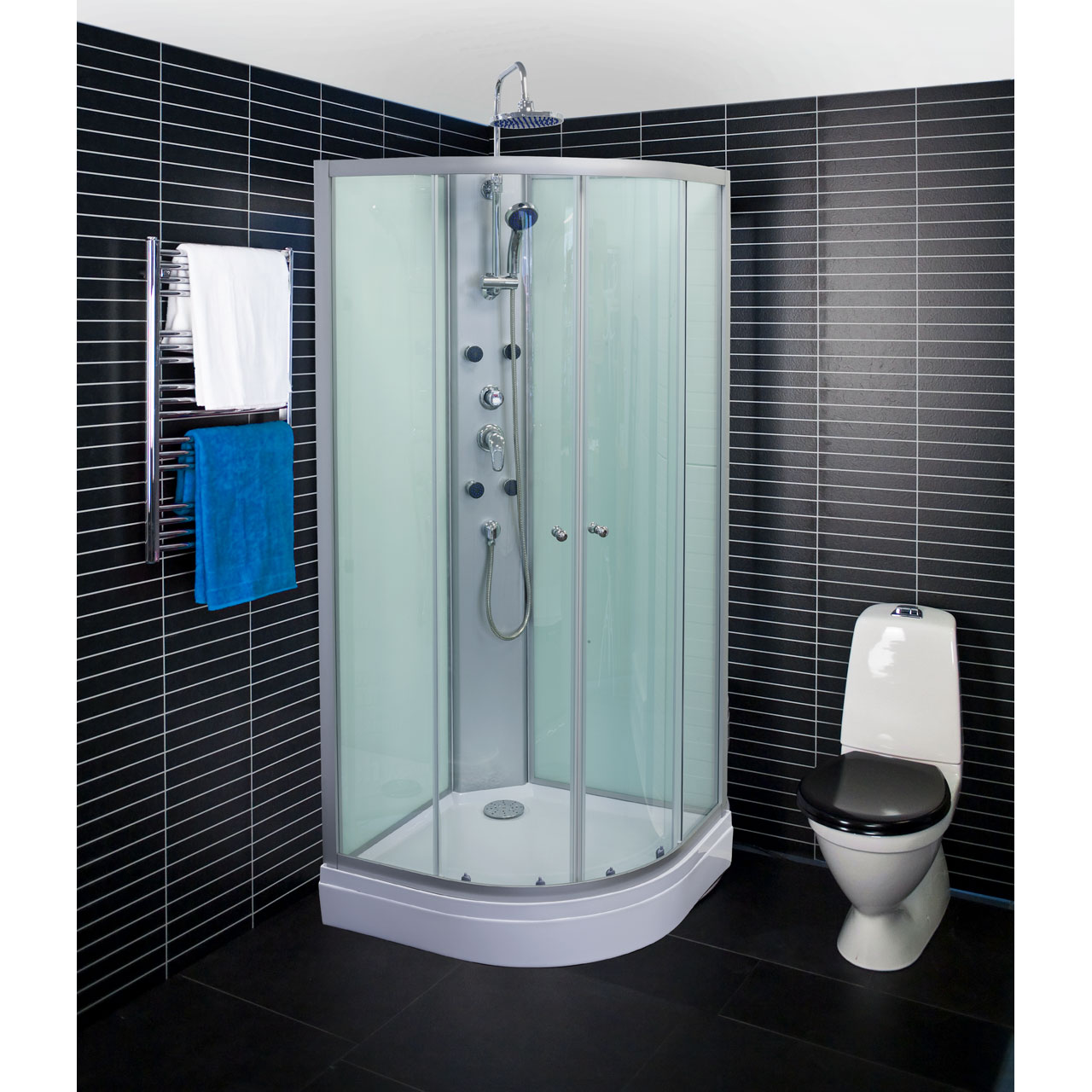

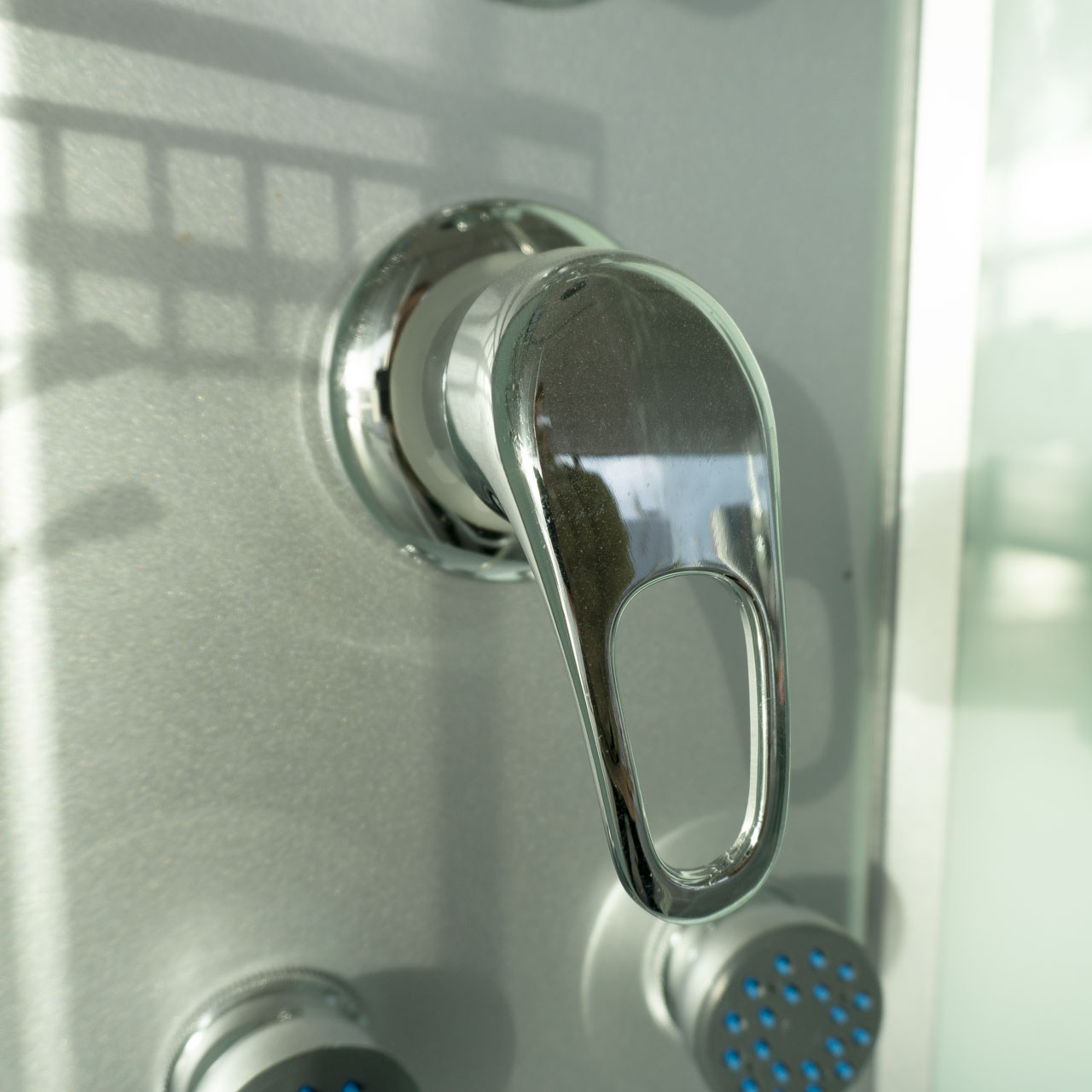

A modern and pure massage shower cabin for corners. The cabin has sliding doors with clear, tempered safety glass. The white tray is made of reinforced fiber glass and has anti-slip surface. With hydro massage hand shower with different spray patterns, 4 body sprays, overhead shower, diverter and flow controller.
See dimension drawing for details.
Size: 850 x 850 mm
Tray height: 150 mm
Glass height: 1850 mm
Height protruding overhead shower: 150-300 mm (adjustable)
Total height including overhead shower: 2150-2300 mm
Weight (gross): front 29 kg, aluminum part back 8.5 kg, glass panel back 25,5 kg, shower tray 13,5 kg
Files and media
 | Dimension drawing (PDF) |
| Mounting instructions (PDF) |
